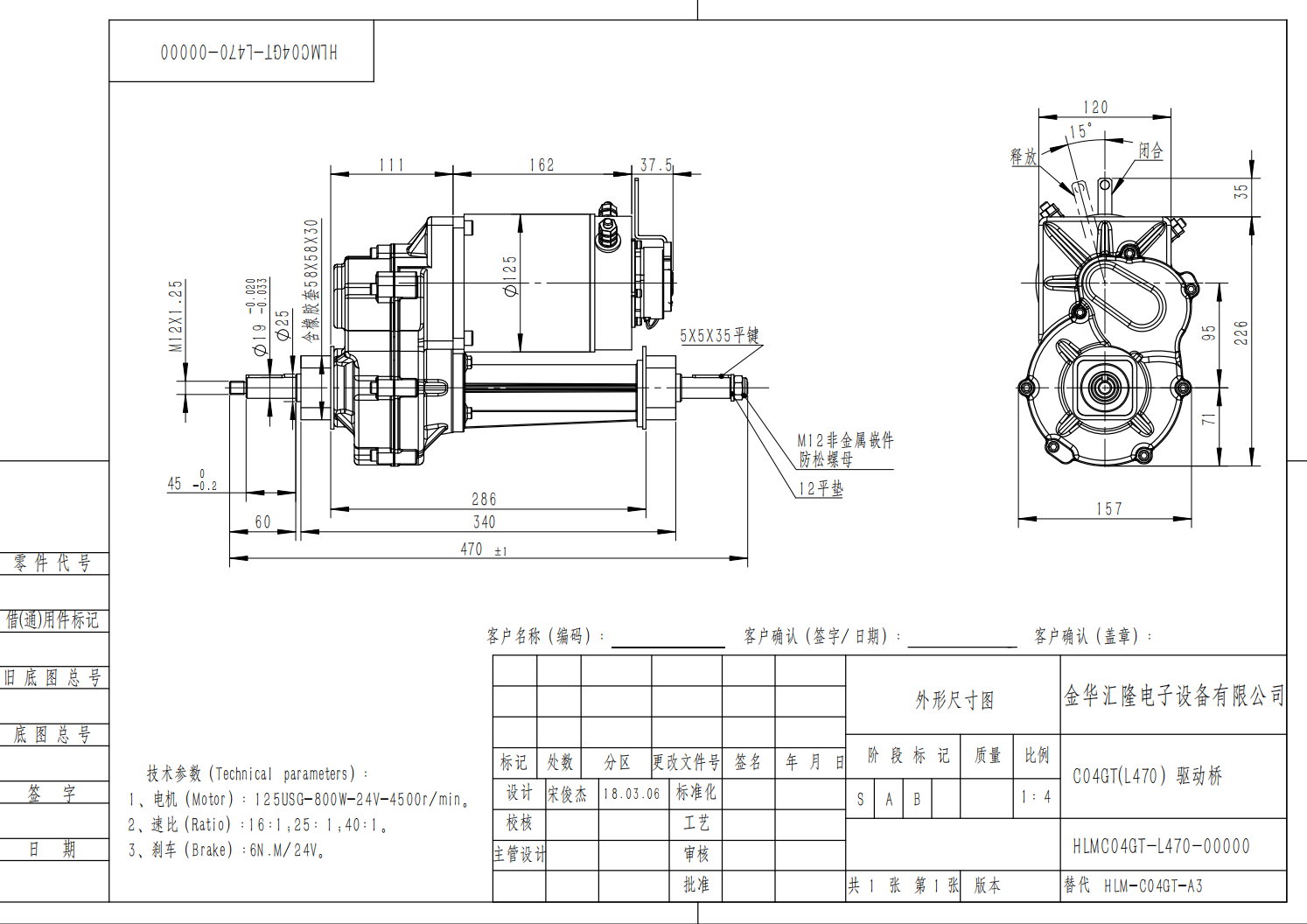

C04GT-125USG-800W Transaxle For Electric Tow Tractor

Short Description:


Product Detail

Product Tags

Key Features:

Motor Specification: 125USG-800W-24V-4500r/min
This high-performance motor operates at 24V and has a high-speed rating of 4500 revolutions per minute (r/min), ensuring quick and efficient operation.

Ratio Options:
The transaxle offers a range of speed reduction ratios to suit various applications:
16:1 for applications requiring high torque at lower speeds.
25:1 for a balance of speed and torque, suitable for medium-duty applications.
40:1 for maximum torque output, ideal for heavy-duty operations where slow and steady movement is crucial.

Braking System:
Equipped with a 6N.M/24V brake, the C04GT-125USG-800W provides reliable stopping power. This electromagnetic brake is designed for safety-critical applications where immediate halting is necessary.

electric transaxle

Importance of Transaxle Selection for Electric Tow Tractor:

The selection of the right transaxle for an electric tow tractor is paramount for several reasons:
Performance Optimization: The transaxle integrates the motor, gearbox, and drive axle into a single unit, enhancing the overall efficiency of the electric tow tractor。The right transaxle ensures that the tractor can handle the required loads and terrain with ease.
Energy Efficiency: High-efficiency transaxles, often exceeding 90%, translate to longer battery life and extended range for the vehicle。This is crucial for operations that require extended use without frequent recharging.
Adaptability to Terrain: Different speed ratios allow the electric tow tractor to adapt to various terrains and loads. For instance, a higher ratio can provide the necessary torque for ascending steep gradients or moving heavy payloads
Operational Safety: A reliable braking system is essential for the safety of the vehicle and its surroundings. The 6N.M/24V brake on the C04GT-125USG-800W ensures that the tractor can come to a safe and immediate stop, reducing the risk of accidents
Cost-Effectiveness: While the initial cost of a high-quality transaxle might be higher, it can lead to long-term savings due to durability and lower maintenance needs
Sustainability: Electric tow tractors, powered by efficient transaxles, contribute to a company’s commitment to sustainability and environmental responsibility。They help reduce carbon footprints and enhance operational efficiencies.
Technological Advancements: Modern transaxles are designed to integrate with smart technologies, such as IoT and advanced battery systems, which optimize power use and prolong operational life

What are the benefits of the 16:1 ratio for heavy loads?
The 16:1 ratio in the C04GT-125USG-800W Transaxle for Electric Tow Tractor offers several significant benefits, particularly when dealing with heavy loads:

Increased Torque: A 16:1 ratio provides a significant mechanical advantage by reducing the speed of the output shaft while increasing the torque. This is crucial for heavy loads as it allows the electric tow tractor to exert greater force, which is essential for moving or pulling heavy objects effectively

Efficient Power Transfer: With a higher ratio, the power from the motor is transferred more efficiently to the wheels, ensuring that the tractor has the necessary traction and pulling power to handle heavy loads without straining the motor

Controlled Speed Reduction: The 16:1 ratio allows for a controlled reduction in speed, which is beneficial for precise control of the tractor’s movement, especially in situations where slow and steady movement is required to prevent damage to cargo or infrastructure

Improved Traction: The increased torque at the wheels provided by the 16:1 ratio can lead to improved traction, which is particularly important when operating under heavy loads or in challenging terrains

Reduced Motor Stress: By increasing the torque at the wheels, the 16:1 ratio reduces the stress on the motor, which can help to prolong the motor’s lifespan and reduce the need for maintenance or repairs

Optimized Performance: The 16:1 ratio can optimize the performance of the electric tow tractor by ensuring that the motor operates within its most efficient range, thereby conserving energy and enhancing the overall efficiency of the vehicle

Safety and Control: For heavy loads, having a higher ratio can provide the necessary control and safety measures, ensuring that the tractor can handle the load without compromising safety or control, which is especially important in industrial and material handling applications

In summary, the 16:1 ratio in the C04GT-125USG-800W Transaxle is specifically beneficial for heavy load applications by providing increased torque, efficient power transfer, improved traction, and reduced motor stress, all of which contribute to the safe and effective operation of an electric tow tractor under heavy load conditions.
