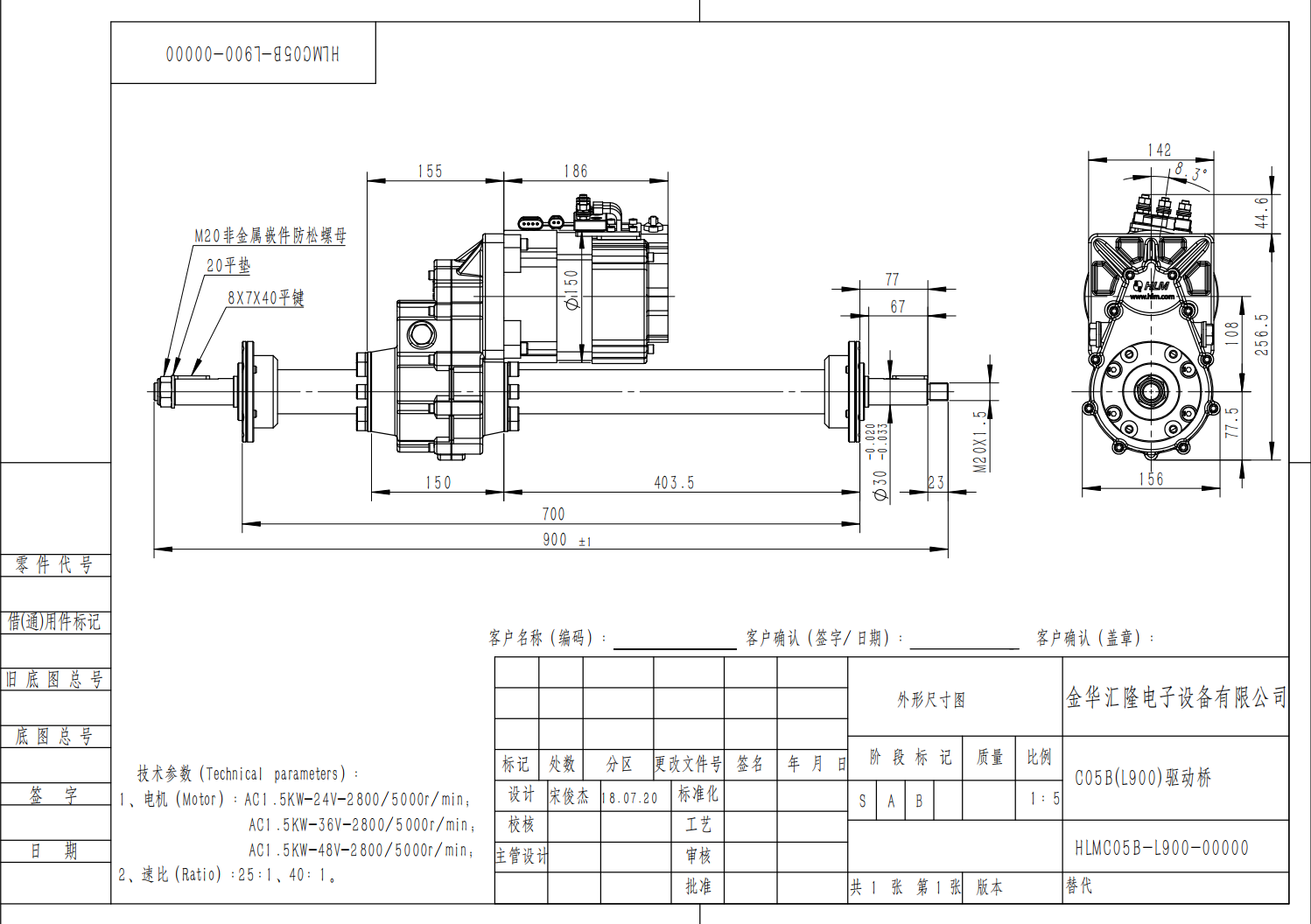

C05B-AC1.5KW Electric Transaxle For Floor Grinding Polishing Machine

Product Details

1Motor：AC1.5KW-24V-2800/5000r/min;
AC1.5KW-36V-2800/5000r/min;
AC1.5KW-48V-2800/5000r/min;
2Ratio:25:1、40：1

Core quality and advantages:

1. Complete drive system:
C05B-AC1.5KW Electric Transaxle integrates the drive shaft, motor and electronic electromagnetic brake to provide a complete drive solution

2. Multi-voltage operation:
Supports 24V, 36V, 48V AC bidirectional operation, adapts to different voltage requirements, and has a long installation distance

3. High-quality aluminum alloy shell:
Adopting high-quality aluminum alloy shell, the internal steel slider adopts a cross-type design, providing more stable and reliable power transmission

4. Customization options:
Parameters such as “rated power”, “output speed”, and “wheelbase” can be customized according to the specific needs of customers to meet personalized needs

5. Low gear backlash and low noise level:
Focus on low gear backlash and low noise level, improve work efficiency and operating comfort

6. Wide range of applications:
Applicable to electric mobile scooters, golf carts, engineering vehicles, electric transport vehicles, agricultural vehicles, cleaning machines, trolleys, electric sightseeing vehicles, sweepers, airport trailers, forklifts, milk transport vehicles, etc.

7. Multiple reduction ratio options:
Provide multiple reduction ratio options such as 25:1, 40:1, etc. to meet different speed and torque requirements

8. Powerful electromagnetic brake:
Equipped with a 12N.m electromagnetic brake, providing additional safety

9. Insulation grade and voltage:
The insulation grade is F, and the insulation voltage is 0–550V AC/ 1m A/ 1 sec., ensuring the safety and reliability of the motor

10. High efficiency and performance:
The integrated motor, controller and gearbox reduce complex mechanical connections, reduce maintenance and improve efficiency
