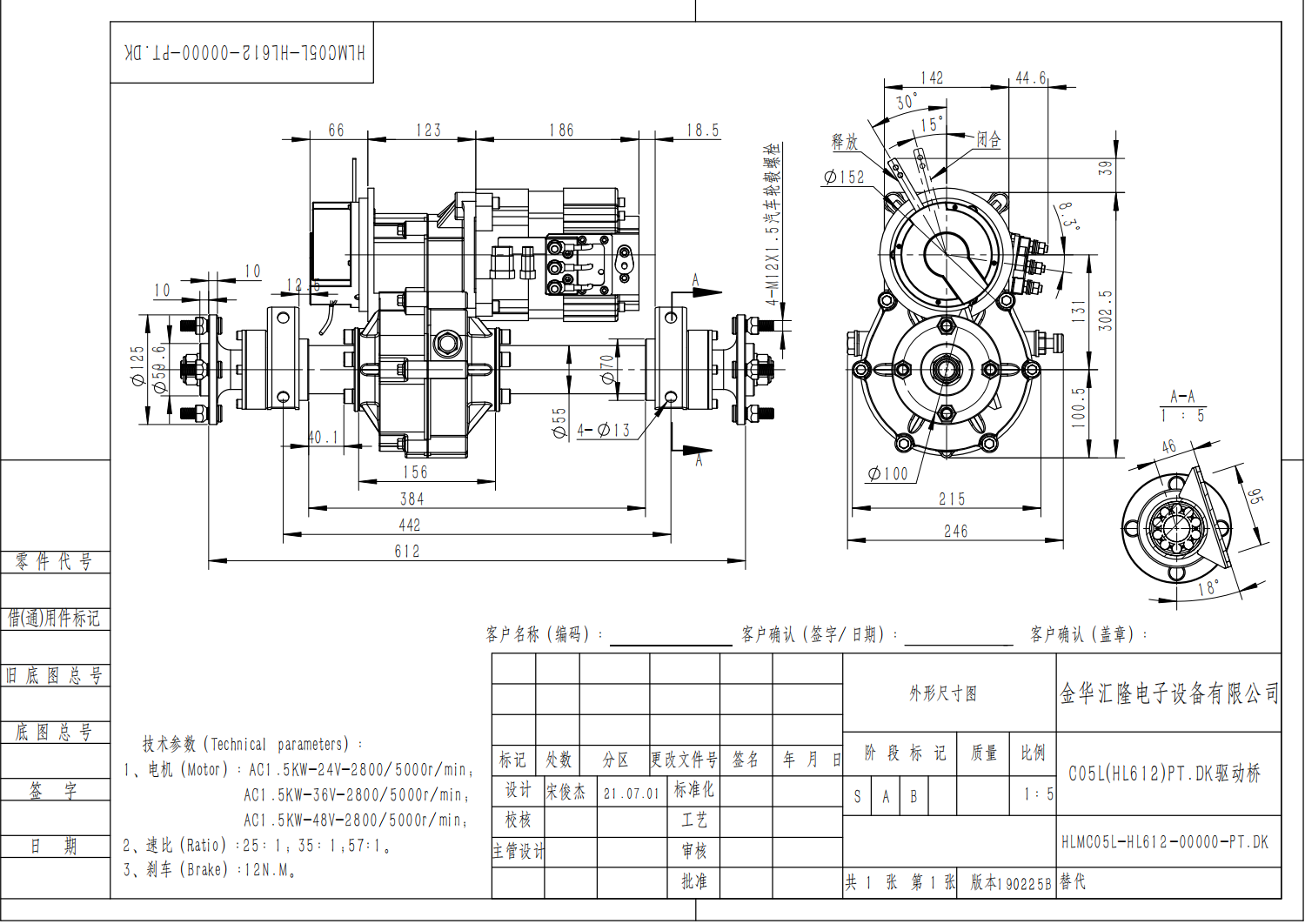

C05L-AC1.5KW Electric Transaxle

More Details

1. Motor: AC1.5KW-24V-2800/5000r/min;
AC1.5KW-36V-2800/5000r/min;
AC1.5KW-48V-2800/5000r/min;
2. Speed ​​ratio: 25:1; 35:1; 57:1.
3. Brake: 12N.M.

Product Features and Benefits

High-efficiency motor
Diverse voltage options: We provide three different voltage specifications, namely 24V, 36V and 48V, to adapt to the power systems of different electric vehicles. AC1.5KW-24V-2800/5000r/min, AC1.5KW-36V-2800/5000r/min and AC1.5KW-48V-2800/5000r/min, you can choose the appropriate motor model according to the battery voltage and power requirements of the vehicle. This diverse voltage selection enables C05L-AC1.5KW Electric Transaxle to be widely used in various types of electric vehicles to meet the personalized needs of different customers.

Strong power output: The rated power of the motor is 1.5KW, which can provide continuous and stable power output. Within the speed range of 2800r/min to 5000r/min, the motor can flexibly adjust the speed according to the actual driving needs to ensure that the vehicle can obtain sufficient power support in different driving conditions such as starting, accelerating and climbing. For example, when an electric forklift is carrying heavy objects, the motor can output strong torque, allowing the forklift to easily lift and carry the goods, improving the handling efficiency; when the electric transport truck is transporting goods quickly, the high speed of the motor can make the vehicle travel quickly, shorten the transportation time, and improve logistics efficiency.

Efficient energy conversion: The motor adopts advanced AC technology and has a high energy conversion efficiency. Compared with traditional DC motors, AC motors have less loss during energy conversion and can convert more electrical energy into mechanical energy, thereby increasing the range of electric vehicles. This means that with the same battery capacity, electric vehicles using C05L-AC1.5KW Electric Transaxle can travel longer distances, reduce the number of charging times, and reduce operating costs.

Precise speed ratio adjustment

Multiple speed ratio options: We provide three different speed ratios, namely 25:1, 35:1 and 57:1. Different speed ratios can adapt to different driving needs and work scenarios. For example, in logistics transportation scenarios that require fast driving, a lower speed ratio (such as 25:1) can be selected so that the vehicle can achieve a higher driving speed and improve transportation efficiency; in heavy object handling scenarios that require greater traction, a higher speed ratio (such as 57:1) can be selected so that the vehicle can obtain greater traction and easily drag heavy objects. Precise speed ratio adjustment enables C05L-AC1.5KW Electric Transaxle to meet the needs of various complex working conditions and ensure that electric vehicles can perform at their best in different scenarios.

Optimize driving performance: Through precise speed ratio adjustment, the driving performance of electric vehicles has been significantly optimized. In the starting stage, a higher speed ratio can provide greater torque, allowing the vehicle to start smoothly and avoid slipping or shaking; in the acceleration stage, a reasonable speed ratio can match the motor speed with the vehicle’s driving speed, providing continuous and stable acceleration performance; when climbing a slope or dragging heavy objects, a higher speed ratio can enable the vehicle to obtain greater traction, easily overcome resistance, and improve driving stability and safety. For example, when an electric forklift is climbing a slope, choosing the right speed ratio can keep the forklift at a stable speed during the climbing process, avoid the phenomenon of sliding down the slope due to insufficient power, and ensure the safety of the forklift and the goods.

Powerful braking system
12N.M strong braking torque: The braking system can provide up to 12N.M braking torque to ensure that the electric vehicle can quickly and smoothly decelerate or stop during driving. In an emergency, such as an obstacle or pedestrian suddenly appears in front, the driver can quickly start the braking system to slow down the vehicle to a safe speed or stop completely in a short time, effectively avoiding the occurrence of collision accidents and ensuring the safety of vehicles and personnel. For example, when an electric transport truck is driving in a narrow warehouse passage, if there are pedestrians or obstacles in front, the driver can immediately start the braking system to quickly decelerate or stop the transport truck to avoid collisions with pedestrians or obstacles, and ensure the safety of operations in the warehouse.

Reliable braking performance: The braking system adopts advanced braking technology and materials, with good reliability and durability. During long-term and high-intensity use, the braking system can maintain stable braking performance and will not cause brake failure due to wear or overheating. For example, in the process of frequent cargo handling by electric forklifts, it is necessary to start and stop constantly. The brake system can withstand frequent braking operations, always maintain reliable braking performance, and ensure that the forklift can run safely and smoothly every time it starts and stops.

Actual case description

Logistics and transportation scenario
In the distribution center of a large logistics company, electric transport trucks are an important tool for transporting goods. Due to the large area of ​​the distribution center and the long transportation distance of goods, there are high requirements for the driving speed and cruising range of electric transport trucks. After using the electric transport truck of C05L-AC1.5KW Electric Transaxle, the logistics company found that the transportation efficiency of the transport truck has been significantly improved. First, the strong power output of the motor enables the transport truck to travel quickly, shortening the transportation time of goods. Secondly, the precise speed ratio adjustment function makes the transport truck more stable when starting and accelerating, reducing the bumps and damage of goods during transportation. Finally, the powerful braking system ensures that the transport truck can stop in time in an emergency, avoiding collision and scattering of goods, and ensuring the integrity and safety of the goods. By using C05L-AC1.5KW Electric Transaxle, the logistics company’s transportation efficiency has increased by 30%, while the damage rate of goods has decreased by 20%, significantly improving the efficiency and quality of logistics distribution.

Warehousing and handling scenarios
In the warehouse of a large factory, electric forklifts are the main equipment for handling heavy objects. Due to the wide variety of goods in the warehouse, different weights, and narrow aisles in the warehouse, there are high requirements for the traction and flexibility of electric forklifts. After using the electric forklift of C05L-AC1.5KW Electric Transaxle, the factory found that the handling efficiency and safety of the forklift have been significantly improved. First, the strong power output of the motor enables the forklift to easily lift and carry heavy objects, and maintain a stable driving speed even when fully loaded. Secondly, the precise speed ratio adjustment function enables the forklift to flexibly adjust the driving speed in narrow aisles, avoiding collision accidents caused by excessive speed. Finally, the powerful braking system ensures that the forklift can stop in time in an emergency, avoiding collisions between the forklift and shelves or goods, and ensuring the safety of operations in the warehouse. By using C05L-AC1.5KW Electric Transaxle, the factory’s handling efficiency has increased by 40%, while the accident rate in the warehouse has decreased by 30%, significantly improving the efficiency and safety of storage and handling.

Municipal sanitation scene
In the cleaning and maintenance of urban roads, electric sweepers are indispensable equipment. Since sweepers need to travel on urban roads for a long time and start and stop frequently, there are high requirements for the power system and braking system of electric sweepers. After using the electric sweeper of C05L-AC1.5KW Electric Transaxle, the sanitation department found that the working efficiency and safety of the sweeper have been significantly improved. First, the efficient energy conversion of the motor has extended the cruising range of the sweeper, reduced the number of charging times, and reduced operating costs. Secondly, the precise speed ratio adjustment function enables the sweeper to flexibly adjust the driving speed according to the road conditions during the cleaning process, improving the cleaning effect and efficiency. Finally, the powerful braking system ensures that the sweeper can stop in time in an emergency, avoiding collisions with pedestrians or vehicles, and ensuring the safety of sanitation workers. By using the C05L-AC1.5KW Electric Transaxle, the sanitation department’s cleaning efficiency has increased by 25%, while the accident rate has decreased by 20%, significantly improving the efficiency and safety of municipal sanitation work.
