Often found in resorts, hotels and leisure venues, golf carts are becoming increasingly popular due to their convenience and environmental friendliness. One key component behind the smooth operation and efficient movement of these carts is the transaxle. In this blog, we will delve into the inner workings of a golf cart transaxle, focusing on its function, structure, and using the famous HLM transmission as an example.
Learn the basics:
To understand how a golf cart transaxle works, we must first understand its primary function. The transaxle is an integrated unit that combines the transmission and differential. Its purpose is to transfer power from the electric motor to the wheels while allowing for different speeds and directions. Therefore, the golf cart can move forward, backward and turn smoothly.
Components of a golf cart transaxle:
1. Gearbox:
The gearbox is located within the transaxle and houses the various gears and bearings required for power transmission. It ensures that rotational force is transferred smoothly and efficiently from the motor to the wheels.
2. Planetary gear motor:
One of the basic elements of a golf cart transaxle is the PMDC (Permanent Magnet DC) planetary gear motor. This motor type offers the advantages of compact size, high torque and efficient power transmission. It plays a vital role in ensuring the smooth operation of your golf cart.
How it works:
Now that we’re familiar with the major components, let’s explore how a golf cart transaxle works.
1. Power transmission:
When an electric motor generates electricity, it converts electrical energy into rotational force. This force is then transferred to the transaxle via the coupling. Here, the gearbox comes into play. As power flows through the transaxle, the gears mesh and transfer rotational force to the drive wheels.
2. Speed control:
Golf carts require different speeds depending on the terrain and desired driving experience. To achieve this, the transaxles use different gear ratios. For example, the HLM gearbox offers a gear ratio of 1/18. By changing the gear combination, the transaxle can increase or decrease rotational force, thereby providing the necessary speed regulation.
3. Direction control:
The ability to move forward, backward and turn seamlessly is crucial for golf carts. The transaxle accomplishes this through a differential mechanism. When the driver wishes to change direction, the differential adjusts the distribution of torque between the wheels, allowing for smooth cornering without slipping.
HLM gearboxes – game-changing solutions:

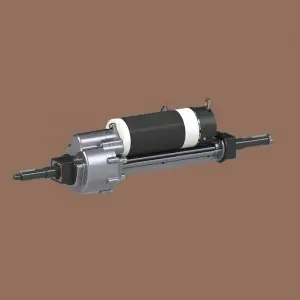

HLM, a well-known company specializing in drive control systems, has developed an excellent transaxle solution called the HLM Transmission. This gearbox comes with impressive specifications and features that enhance the performance of your golf cart. The HLM transmission, model number 10-C03L-80L-300W, is a perfect example of its cutting-edge technology.
1. Output power:
The HLM gearbox delivers an impressive 1000W output power, ensuring optimal performance and efficiency. With power delivery like this, driving up hills and over challenging terrain becomes effortless.
2. High quality design:
HLM’s gearboxes are engineered to the highest precision, ensuring impeccable quality and durability. Its compact design easily fits inside a golf cart while maintaining excellent performance.
3. Application Versatility:
HLM gearboxes are used in numerous applications including hotels, electric vehicles, cleaning equipment, agriculture, material handling and AGVs. This versatility reflects HLM’s commitment to providing drive control system solutions across disciplines.
Golf cart transaxles play a vital role in determining the smooth operation and maneuverability of these vehicles. Understanding the inner workings of a transaxle, such as an HLM transmission, allows us to understand the complex mechanics behind these golf carts. HLM’s commitment to innovation and excellence ensures golf carts equipped with high-quality transaxles deliver unparalleled performance and reliability. Whether in a hotel, resort or leisure area, golf carts equipped with a high-efficiency transaxle provide a comfortable and enjoyable experience for all users.
