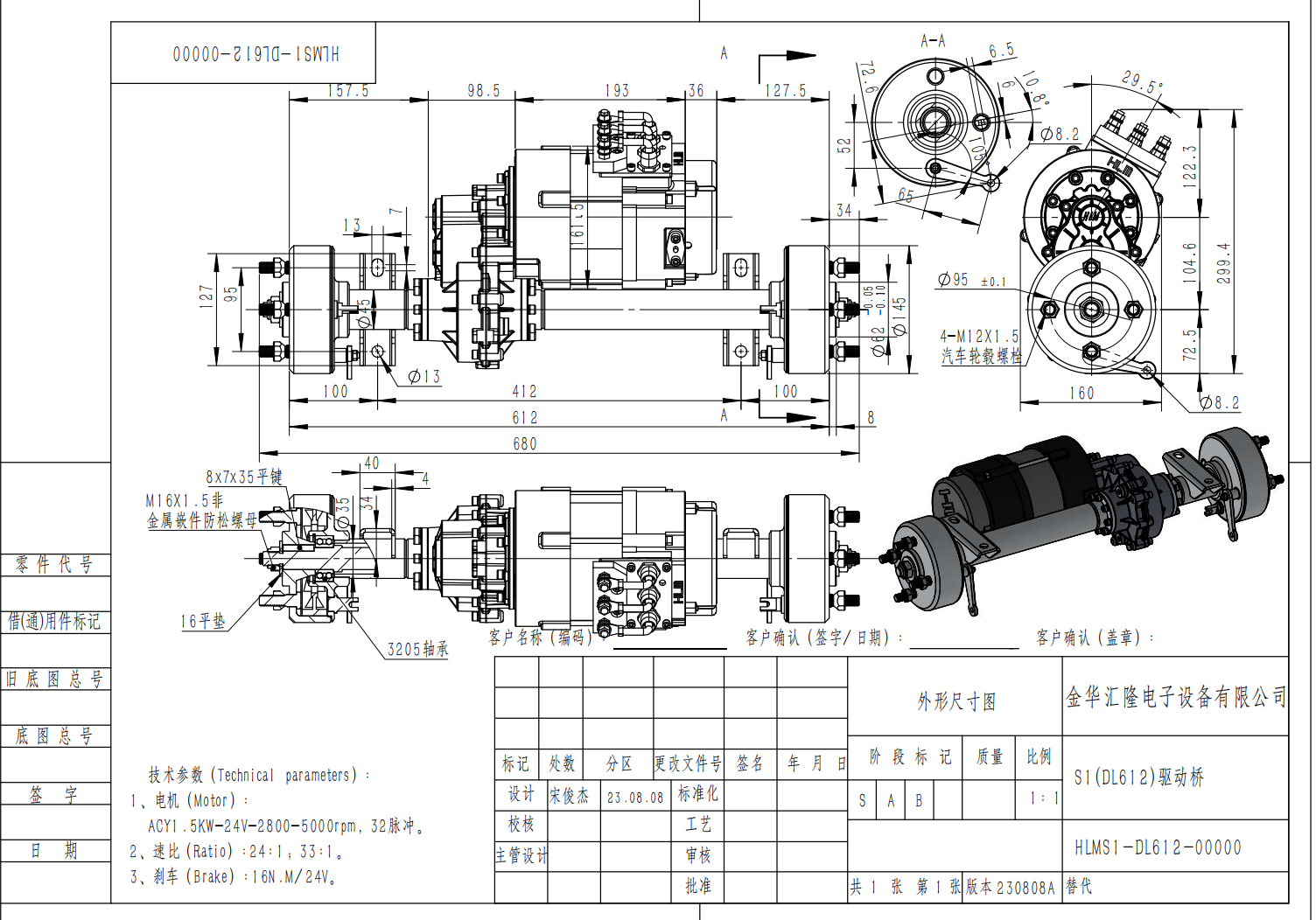

S1-ACY1.5KW Electric Transaxle For Material Handling Equipment
Core Features and Specifications
Motor
The heart of the S1-ACY1.5KW Electric Transaxle is its ACY1.5KW-24V-2800-5000rpm motor, equipped with 32 pulses. This high-performance motor delivers a robust 1.5KW of power, operating within a speed range of 2800 to 5000 revolutions per minute (rpm). The wide speed range allows for precise control and adaptability to different material handling tasks, ensuring efficient and effective operation. The motor’s 32 pulses enhance its performance by providing smooth and consistent power delivery, reducing vibration and improving overall system stability
Ratio
The S1-ACY1.5KW Electric Transaxle offers two versatile ratio options: 24:1 and 33:1. These ratios provide flexibility in terms of speed and torque, allowing the transaxle to be customized to suit specific material handling applications. The 24:1 ratio is ideal for applications requiring higher speed and quick movement, such as in warehouse environments where fast loading and unloading are essential. On the other hand, the 33:1 ratio offers increased torque, making it suitable for heavy-duty tasks that involve lifting or moving large loads, ensuring smooth and powerful operation
Brake
Safety is a critical aspect of material handling, and the S1-ACY1.5KW Electric Transaxle delivers with its reliable 16N.M/24V brake system. This high-torque brake ensures that the equipment can come to a complete stop quickly and safely, preventing accidents and damage to both the machinery and the surrounding environment. The brake is designed to work seamlessly with the motor and transaxle, providing consistent and reliable braking performance even under heavy loads and challenging conditions
How does it compare to other 24V transaxles?
The S1-ACY1.5KW Electric Transaxle offers several advantages compared to other 24V transaxles available in the market:
Power and Performance
Higher Power Output: The S1-ACY1.5KW Electric Transaxle provides a robust 1500W of power, which is significantly higher than many other 24V transaxles. For example, some models only offer 800W or 1000W of power. This increased power output allows for more efficient and effective operation, especially in applications requiring higher torque and speed.
Higher RPM: With a rated speed of 3500 RPM, the S1-ACY1.5KW Electric Transaxle can achieve faster speeds compared to some other models. This higher RPM is beneficial for applications that require quick acceleration or need to cover larger distances in a shorter amount of time
Efficiency and Integration
Integrated Design: Like many modern transaxles, the S1-ACY1.5KW Electric Transaxle combines the motor, controller, and gearbox into a single unit. This integrated design not only improves efficiency by reducing energy loss but also simplifies installation and maintenance. Compared to traditional setups with separate components, this transaxle is more compact and easier to integrate into various vehicle designs.
Energy Efficiency: The higher power output and efficient design of the S1-ACY1.5KW Electric Transaxle make it an energy-efficient choice. It can perform tasks more effectively while consuming less power, which is advantageous for battery-powered vehicles where energy conservation is crucial
Versatility and Durability
Wide Range of Applications: The S1-ACY1.5KW Electric Transaxle is suitable for a variety of applications, including electric vehicles, sweepers, and other battery-powered machines. Its high power and RPM make it versatile enough to handle different types of loads and terrains, providing reliable performance in various environments.
Durability: Built with high-quality components, the S1-ACY1.5KW Electric Transaxle is designed for durability and long-term use. It can withstand the demands of continuous operation and is less prone to wear and tear compared to some lower-powered models
Overall, the S1-ACY1.5KW Electric Transaxle stands out in terms of power, efficiency, and versatility, making it a superior choice for businesses and manufacturers seeking high-performance solutions for their electric vehicles and equipment.
